LZQX-LQ-X




        LZQX-LQ-X
        INTELLIGENT INTEGRATION OF SELF-CLEANING FILTER
          ▲SINGLE TREATMENT OF WATER:10～800 m3/h
          ▲MAXIMUM OPERATING PRESSURE:0.1～1.6 Mpa
          ▲PRESSURELOSS:≤ 0.018 Mpa
          ▲MAXIMUM MEDIUM TEMPERATURE:95℃
          ▲THE RANGE OF FILTRATION:100～3000 μm
          ▲SELF-CLEANING WATER REQUIRED:＜ 1％
          ▲CLEAN CONTROL:INTELLIDENT CONTROL AND NANUAL
          ▲POWER REQUIREMENTS:3×380V  50Hz
          ▲SELF-CLEANING TIME:10～60SECONDS
          ▲FILTER MATERIAL:SUS304 SUS316L
          ▲DODY MATERIAL:Q235 SUS304
          ▲FILTER TYPES:SINTERED MESH,WOVEN MESH,WEDGH-SHAPED NETWORK

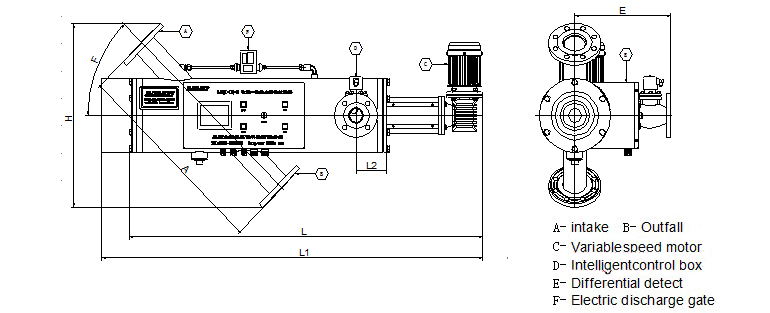

Specification model
Diameter
L
L1
L2
A
H
E
F
Flow
Mesh size
Weight
DN
mm
mm
mm
mm
mm
mm
 F°
m3/h
cm2
kg
LZQX-LQ-X-80
80
1350
1850
117
760
676
368
45
45
3000
164
LZQX-LQ-X-100
100
1850
2250
117
760
690
368
45
65
4000
180
LZQX-LQ-X-125
125
1956
2456
289
1020
895
394
45
105
4500
222
LZQX-LQ-X-150
150
2156
2656
289
1020
920
394
45
150
5000
240
LZQX-LQ-X-200
200
2266
2766
258
1270
1135
448
45
265
6000
286
LZQX-LQ-X-250
250
2766
3266
258
1520
1277
448
40
410
7000
312
LZQX-LQ-X-300
300
2586
3086
258
1720
1405
478
38
590
8000
386
LZQX-LQ-X-350
350
2986
3590
258
2020
1445
478
30
800
9000
442

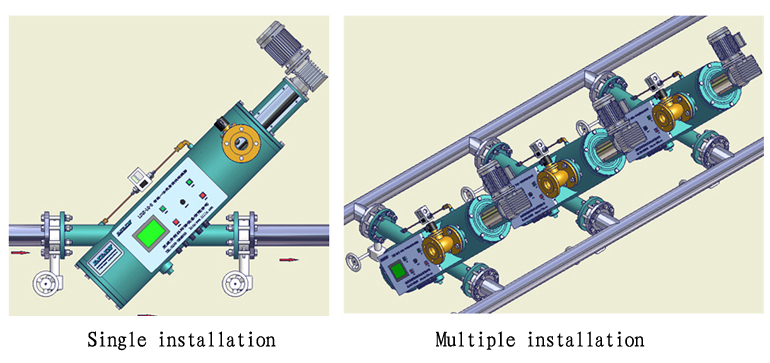

                Site installation and equipment connection
