ZTLQ Straight-through filters




       ZTLQ
      Straight-through filters
        ▲     single treatment of water: 10 ~ 2350 m3 / h
        ▲     Maximum working pressure: 0.1 ~ 1.6 Mpa
        ▲     pressure loss: ≤ 0.018 Mpa
        ▲     maximum medium temperature: 95 ℃
        ▲     filtration: 100 ~ 3000 μm
        ▲     Filter Material: SUS304 SUS316L
        ▲     Body Material: Q235 SUS304
        ▲     filter types: mesh, sintered mesh, woven mesh

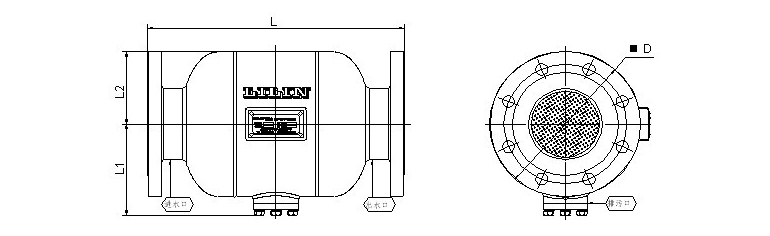

Specification model
Diameter
L
L1
L2
φD
Treated water
Connecting flange nominal pressure
DN
mm
mm
mm
mm
m3/h
   MPa
ZTLQ-50
50
316
110
80
165
25
1.6
ZTLQ-65
65
316
110
80
185
35
1.6
ZTLQ-80
80
316
110
80
200
45
1.6
ZTLQ-100
100
376
138
110
220
65
1.6
ZTLQ-125
125
376
138
110
250
105
1.6
ZTLQ-150
150
426
168
138
285
150
1.6
ZTLQ-200
200
500
194
162
340
265
1.0
ZTLQ-250
250
610
244
216
395
410
1.0
ZTLQ-300
300
786
288
254
445
590
1.0
ZTLQ-350
350
800
288
254
505
800
1.0
ZTLQ-400
400
800
400
306
565
1050
1.0
ZTLQ-450
450
850
400
306
615
1320
1.0
ZTLQ-500
500
900
468
380
670
1630
1.0
ZTLQ-600
600
1000
468
380
780
2350
1.0
