LZQX-LQ-E



    LZQX-LQ-E
    INTELLIGENT INTEGRATION OF SELF-CLEANING FILTER
    ▲ SINGLE TREATMENT OF WATER:10～800 m3/h
    ▲ MAXIMUM OPERATING PRESSURE:0.1～1.6 Mpa
    ▲ PRESSURELOSS:≤ 0.018 Mpa
    ▲ MAXIMUM MEDIUM TEMPERATURE:95℃
    ▲THE RANGE OF FILTRATION:100～3000 μm
    ▲SELF-CLEANING WATER REQUIRED:＜ 1％
    ▲CLEAN CONTROL:INTELLIDENT CONTROL AND NANUAL
    ▲POWER REQUIREMENTS:3×380V  50Hz
    ▲SELF-CLEANING TIME:10～60SECONDS
    ▲FILTER MATERIAL:SUS304 SUS316L
    ▲DODY MATERIAL:Q235 SUS304
    ▲FILTER TYPES:SINTERED MESH,WOVEN MESH,WEDGH-SHAPED NETWORK



Specification model
Diameter
L
L1
L2
L3
L4
H
H1
E
Flow
Mesh size
Weight
DN
mm
mm
mm
mm
mm
mm
mm
mm
m3/h
cm2
kg
LZQX-LQ-E-80
80
450
270
117
1350
1850
256
526
368
45
3000
160
LZQX-LQ-E-100
100
450
270
117
1850
2250
256
526
368
65
4000
172
LZQX-LQ-E-125
125
660
390
289
1956
2456
275
544
394
105
4500
210
LZQX-LQ-E-150
150
660
390
289
2156
2656
275
544
394
150
5000
226
LZQX-LQ-E-200
200
720
564
258
2266
2766
365
634
448
265
6000
278
LZQX-LQ-E-250
250
720
564
258
2766
3266
365
634
448
410
7000
292
LZQX-LQ-E-300
300
880
650
258
2586
3086
390
722
478
590
8000
368
LZQX-LQ-E-350
350
880
650
258
2986
3590
390
722
478
800
9000
426

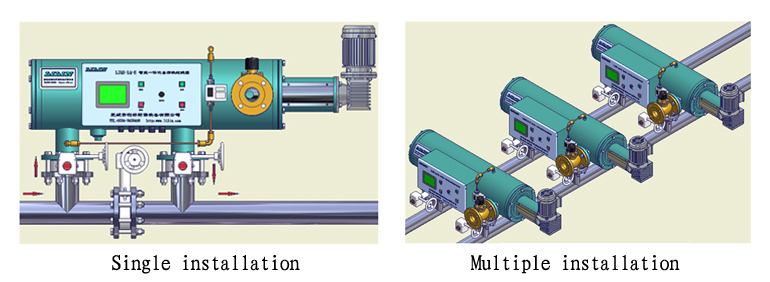

                     Site installation and equipment connection

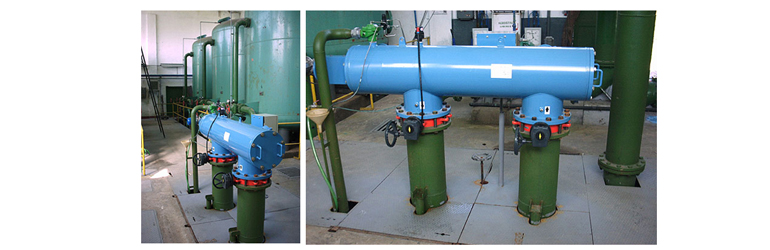

                        Site installation using pictures
